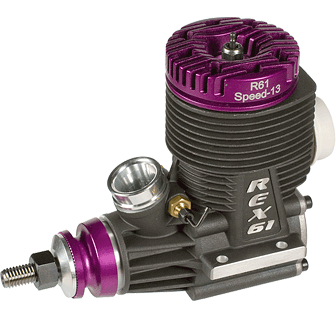

Package Deal - Last one - Novarossi Rex R61F SPEED/13 Aircraft Engine with 9mm Carburetor w/ Slower Less Responsive Black Case

Package Deal - Last one - Novarossi Rex R61F SPEED/13 Aircraft Engine with 9mm Carburetor w/ Slower Less Responsive Black Case

  • Category: Novarossi Rex R61F Aircraft Engine, Novarossi Rex R61F SPEED/13 Aircraft Engine
Availability: Out Stock
$739.33
Sold Out

$739.33

The Last One

Package Deal includes the Engine, Long & Compact Tuned Pipe, Spare Case, Carb Header 5 Plugs, Piston / Sleeve and a slew of parts to keep your engine going for generations to come.  Don't miss out on this LAST ONE.

Note: Black case models are slightly slower and less responsive than the Original White Case models Planethobby created - we've never figured out just why that is ;)....I guess we'll never know.



Included in Package :

Glow Plugs C6S (5)

Screws - 1009

Head - 2402

Underhead - 28400

Wrist Pin Clips - 5450

Piston Sleeve Assembly - 8402

Case - 9402

Backplate Screws - 27000

Crankshaft - 15402

Exhaust Gasket - 21451

Collet - 20400

Prop Nut - 20450

Prop Washer - 20470

Venturi - 20156

O Ring - 11368

Bottom Carb Ring - 14402

Carb Nut - 19001

Needle Nut - 20104

Needle - 20103

Needle Rings - 19000

Spray Bar - 20106

Needle Washers - 11618

Fuel Nipple - 20910

9mm Inflight Carb - 40401

Header - 40400

Pipe - 50351

Pipe - 50400







 .60cc REX Rear Exhaust Engines includes an inflight adjustable 9mm carburetor.The adjustable mixture control requires an additional servo.  Good gas mileage for the classic pattern flyers with limited tank space is another advantage of this carburetor. Engine is rated at  2.5hp at 18,000 RPM. This engine is tuned for top performance.

Add the tuned pipe and select the header that fits your model. Most popular pipe is the 50400 or you can choose a more compact pipe model 50351, about 3" shorter.

Use the 40403 header that raises the pipe 2" for additional clearance for the tuned pipe in many pattern aircraft.

Or for maximum clearance use Model 40402 that raises the pipe 3" above the engine exhaust.

The Novarossi Model 40400 is a straight exhaust adapter.

And, model 40401 provides a gentle S curve to raise the pipe approximately 1".

 Black case models are slightly slower and less responsive than the Original White Case models Planethobby created - we've never figured out just why that is.





R61F SPEED/13


Displacement: 9,98 cc
R.P.M. (max power): 18.000 RPM
Practical range: 2.000-20.500 R.P.M.
Bore x stroke: 23x24 mm
Sleeve: 4 ports
Rear ball bearings: steel
Front ball bearings: steel
Crankshaft: 18 mm with 8 x 1.25 Threads
Carburetor: aluminium - 9mm in-flight adjustable R/C Carburetor
Glowplug: Standard Special (C6S)
Exhaust position: rear

Weight: 620 g
Fuel type: 10% nitro or higher with the .2mm shim.̴Ì_Some modelers use 30%.̴Ì_
